Choosing custom tincture boxes requires balancing four critical engineering factors: exact glass bottle and dropper pipette dimensions, structural drop and shock protection, carrier oil barrier coatings, and regional compliance labeling layout. For standard 30ml (1 oz) and 15ml bottles, compact 18pt–24pt SBS folding cartons with auto-locking bottoms provide fast assembly and dependable shelf presence. For premium multi-spectrum oils, organic extracts, or gift collections, rigid drawer boxes or custom die-cut collar inserts prevent glass-on-glass rattling and elevate unboxing value.
Liquid tinctures in glass dropper bottles are among the heaviest and most fragile items in botanical and wellness retail. Unlike lightweight dry goods, an oil tincture combines heavy glass, liquid weight, a delicate glass pipette, and a flexible rubber bulb. If your carton is even 2mm too short, the rubber bulb is crushed against the top flap, causing potential seal leakage. If the carton is too loose, the bottle rattles during transit, leading to broken pipettes, scuffed labels, or dented corners.
In this buyer guide, we explore bottle sizing tolerances, carton styles, interior neck inserts, oil-resistant coatings, child-resistant mechanisms, and pre-quote specifications so you can order custom tincture boxes that safeguard your formulation and maximize retail shelf appeal.
1. Dropper Bottle Sizing and Dimensional Tolerances
Tincture packaging is engineered around the outer physical footprint of the assembled container—not simply the liquid fill volume. A nominal "30ml bottle" varies significantly across glass manufacturers depending on whether you use a classic Boston Round, Euro Dropper, square glass vial, or tapered cosmetic cylinder.
Assembled Container Measurements
When measuring your tincture bottle for custom dieline creation, always measure the fully assembled unit with the dropper cap screwed down to maximum torque:
- Outer Diameter (OD) / Base Width: Measure the widest diameter of the glass body.
- Body Height (Shoulder Height): Height from the bottom base to the neck shoulder.
- Total Assembled Height: Height from the bottom base to the very crown of the rubber bulb or push-button actuator.
- Cap Diameter & Collar Width: Diameter of the ribbed child-resistant (CR) closure or smooth aluminum overshell.
| Bottle Nominal Volume | Typical Glass Body OD | Total Assembled Height | Recommended Internal Box Dimensions (W x D x H) | Common Substrate Caliper |
|---|---|---|---|---|
| 10ml (1/3 oz) | 24 mm – 25 mm | 80 mm – 85 mm | 27 mm x 27 mm x 88 mm (1.06" x 1.06" x 3.46") | 16pt – 18pt SBS |
| 15ml (1/2 oz) | 28 mm – 29 mm | 90 mm – 95 mm | 31 mm x 31 mm x 98 mm (1.22" x 1.22" x 3.86") | 18pt SBS / Kraft |
| 30ml (1 oz - Standard) | 32 mm – 33 mm | 102 mm – 108 mm | 35 mm x 35 mm x 112 mm (1.38" x 1.38" x 4.41") | 18pt – 20pt SBS / Kraft |
| 60ml (2 oz) | 38 mm – 39 mm | 118 mm – 125 mm | 42 mm x 42 mm x 128 mm (1.65" x 1.65" x 5.04") | 20pt – 22pt SBS / Auto-Lock |
| 100ml – 120ml (4 oz) | 48 mm – 50 mm | 138 mm – 148 mm | 53 mm x 53 mm x 152 mm (2.09" x 2.09" x 5.98") | 22pt – 24pt SBS / E-Flute Corrugated |
Note: Allow 2mm to 3mm of total clearance around the bottle width and 3mm to 4mm of vertical height clearance to accommodate paperboard folding thickness and prevent pressure on the rubber dropper bulb.
2. Structural Carton Styles for Tinctures
Selecting the right carton architecture depends on production line speed, bottle weight, and your retail distribution model.
| Carton Style | Key Structural Feature & Application |
|---|---|
| Auto-Lock Bottom | High-speed packing, crash base supports heavy glass |
| Reverse Tuck (RTE) | Clean front display, cost-effective retail runs |
| Straight Tuck (STE) | Seamless top & bottom closure for automated lines |
| Sleeve & Drawer | Luxury reveal, horizontal slide with custom insert |
| Two-Piece Rigid | Connoisseur collections, heavy chipboard protection |
| Gravity Dispenser | Shelf-ready POP counter displays for multi-packs |
Auto-Lock Bottom (Crash Lock Bottom)

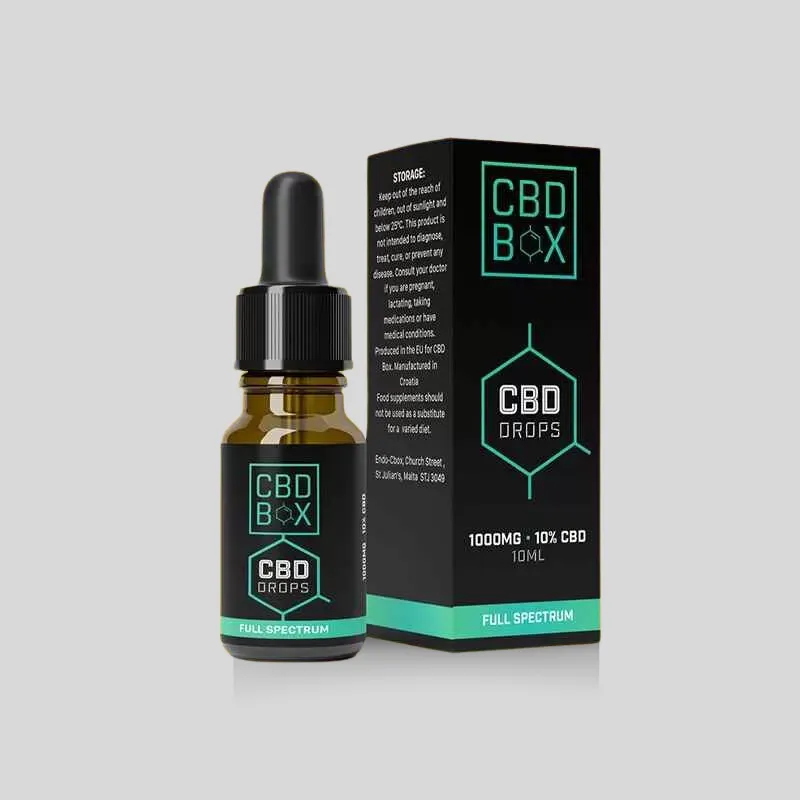

The auto-lock bottom is the industry standard for 30ml, 60ml, and 120ml glass tincture bottles. The bottom flaps are pre-glued during manufacturing and snap automatically into a rigid, interlocking base as soon as the carton is squared open. This provides superior bottom load-bearing strength, preventing heavy glass bottles from falling through the bottom during handling.
Reverse Tuck End (RTE) and Straight Tuck End (STE)
For 10ml and 15ml lightweight vials, tuck-end cartons offer an economical, space-efficient solution. In a Straight Tuck carton, both top and bottom flaps fold toward the back, leaving the front presentation face entirely smooth and uninterrupted. In a Reverse Tuck carton, the top flap folds back while the bottom folds forward, maximizing sheet layout efficiency on the printing press.
Sleeve and Drawer (Slider Box)
Slider boxes feature a rigid outer sleeve and an inner sliding tray. Often paired with a custom-cut paperboard or foam insert, this structure holds the dropper bottle securely horizontal or semi-upright. It delivers a tactile unboxing ritual popular for high-potency formulations, cosmetic serums, and luxury wellness tinctures.

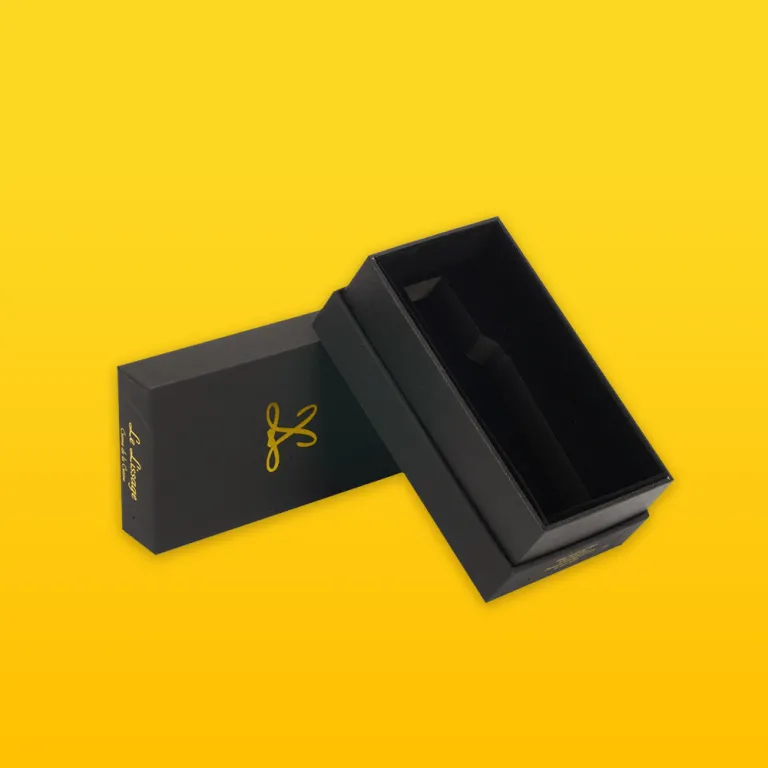

Two-Piece Rigid Setup Box
Constructed from 60pt–80pt solid greyboard wrapped in custom-printed art paper, two-piece rigid boxes provide the ultimate protection against crushing. Rigid boxes are ideal for multi-bottle gift sets, day/night tincture pairings, or premium limited editions.

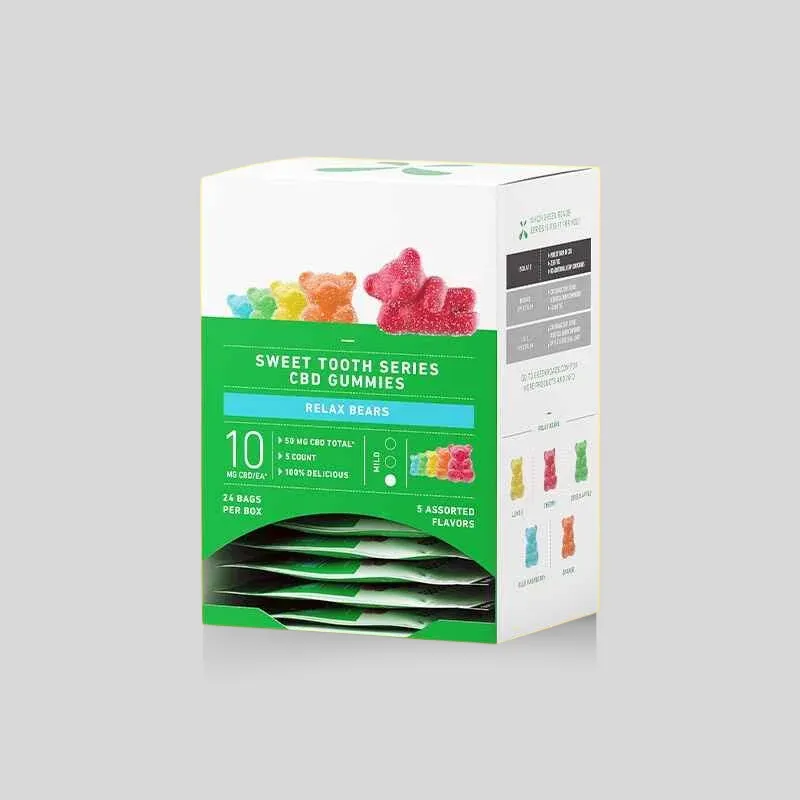

Countertop Gravity Dispenser Boxes
For dispensaries, pharmacies, and specialty health boutiques, countertop dispenser boxes act as both secondary shippers and point-of-purchase (POP) retail merchandisers. A perforated front flap tears away to allow individual tincture cartons to feed forward smoothly as shoppers purchase units.
3. Interior Insert Engineering: Protecting Glass Pipettes
Inside every tincture bottle is a fragile glass pipette extending almost to the container base. If a carton experiences a sudden impact or vibration during parcel transit, the glass pipette can snap against the bottle wall or the bottom glass base can fracture.
Integrating an engineered interior insert isolates the container, absorbs shock, and keeps the bottle perfectly centered:
- Die-Cut Paperboard Neck Collars: A single sheet of matching 18pt–20pt cardstock folded into an internal bridge with a die-cut circular aperture. The collar grips the neck shoulder of the bottle, locking it in place and keeping the rubber bulb suspended without touching the outer box walls.
- Shock-Absorbing Bottom Crash Platforms: An elevated false bottom that creates a 5mm–10mm air gap below the heavy glass base, dampening vertical drops during parcel shipping.
- Precision High-Density EVA / EPE Foam Trays: Custom-molded or water-jet-cut foam inserts lined with velvet or matte laminates. Common in rigid slider boxes and gift sets, foam inserts provide 360-degree shock absorption and prevent any internal movement.
- Multi-Bottle Segmented Dividers: Interlocking cross-grid partitions that prevent multiple tincture bottles from clinking against each other inside a single kit box.
4. Substrates, Liquid Barrier Properties, and Light Shielding
Botanical oils, MCT carrier oils, terpenes, and liquid tinctures present unique chemical and physical packaging challenges. The wrong paper stock or finish can absorb stray oil drips or allow UV light degradation.
Paperboard Substrate Options
- Solid Bleached Sulfate (SBS) (16pt to 24pt): Premium virgin wood fiber paperboard with a smooth, ultra-white clay-coated surface. SBS delivers maximum color brilliance for vibrant branding, sharp text, and high-contrast barcode printing.

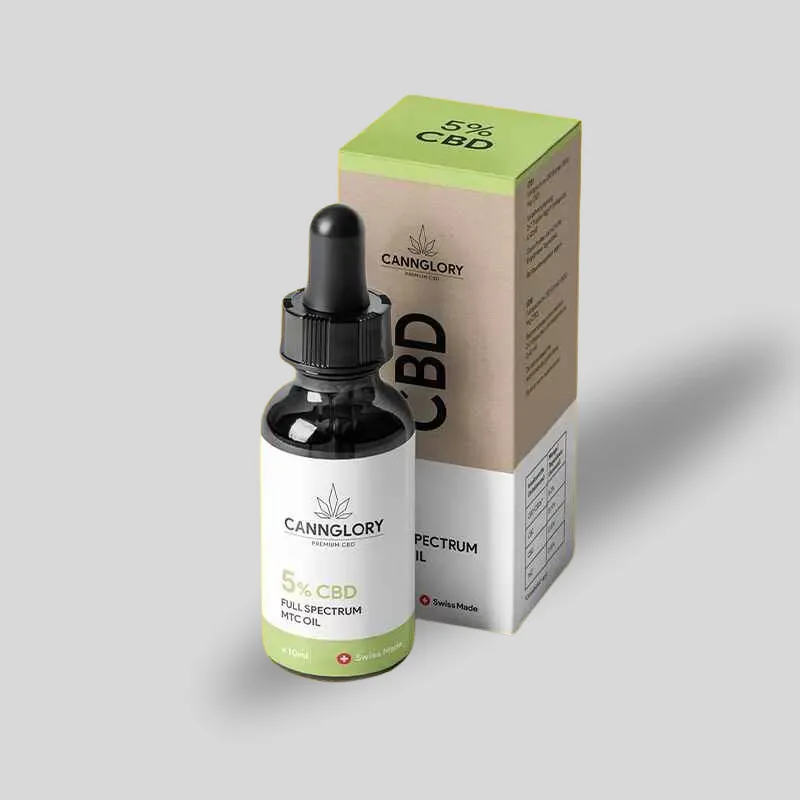

- Natural Unbleached Kraft Paperboard: Eco-friendly brown kraft stock crafted from unbleached virgin or recycled pulp. Offers an organic, artisanal aesthetic popular for whole-plant extracts and herbal formulations.
- Metallic Foil Paperboard (Met-PET): Paperboard laminated with a bright silver or gold metallized polyester film. Provides brilliant metallic effects across the entire carton surface when printed with translucent inks.
Oil-Resistant and Greaseproof Barrier Coatings
When consumers open and dispense a tincture, trace amounts of carrier oil (such as MCT coconut oil, hemp seed oil, or extra virgin olive oil) often run down the bottle neck. If this oil touches unsealed paperboard, it creates dark, translucent grease spots that degrade the package appearance.
To prevent oil staining:
- Aqueous Barrier Varnishes: Water-based coatings applied during printing that seal the board pores without compromising recyclability.
- Protective Matte or Gloss Film Lamination: A thin polypropylene film thermally bonded to the outer paperboard surface that creates an impermeable barrier against oil smears, moisture, and scuffing.
UV Light Protection
Cannabinoids (such as CBD, CBG, and THC) and delicate herbal compounds degrade rapidly when exposed to ultraviolet (UV) light. While amber, cobalt blue, or opaque black glass bottles provide the primary light barrier, opaque 18pt–24pt SBS or dense kraft folding cartons act as an impenetrable secondary light shield during warehouse storage and brightly lit retail shelf display.
5. Child-Resistant Mechanisms and Tamper Evidence
Depending on your formulation and jurisdictional requirements (such as 16 CFR § 1700.20 standards for child-resistant packaging), tincture packaging may require certified child-resistant (CR) locking features or tamper-evident seals.
| Safety Mechanism | Engineering Function & Security Standard |
|---|---|
| Primary CR Closure | Certified child-resistant push-and-turn dropper |
| Locking Carton Tabs | Hidden release tabs requiring two-hand release |
| Tamper Wafer Seals | Ultra-destructible clear or printed tape seals |
| Perforated Tear Notch | Fiber-tear indicator showing prior carton open |
- Primary vs Secondary CR Compliance: In many markets, having a certified child-resistant push-and-turn dropper cap on the primary glass bottle satisfies regulatory mandates, allowing the secondary carton to focus on protection, branding, and tamper evidence.

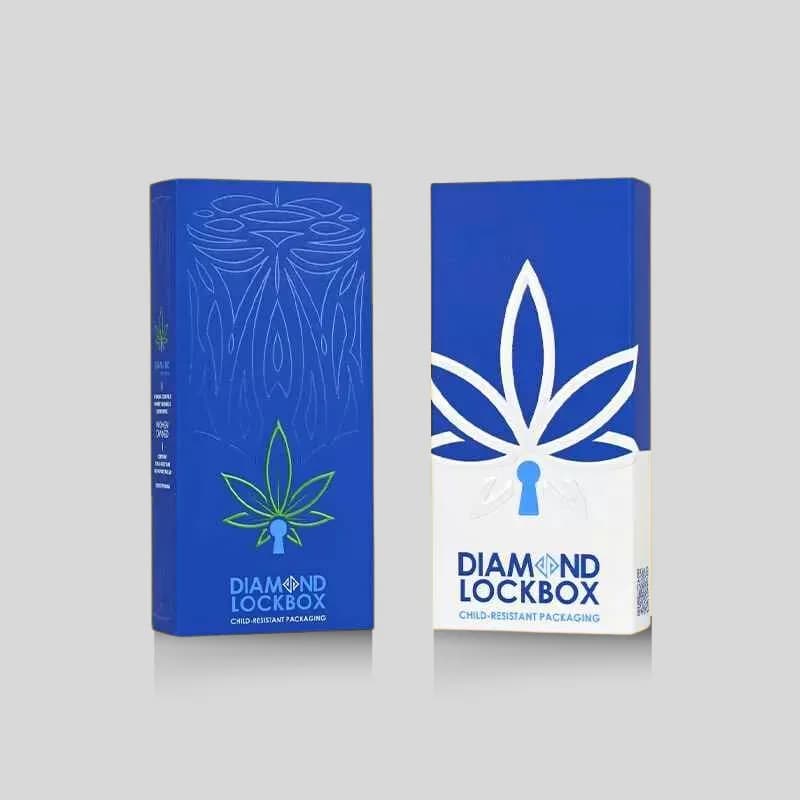

- Child-Resistant Locking Cartons: For markets requiring secondary CR containment, custom cartons utilize locking push tabs, internal locking teeth, or dual-release slider buttons that require simultaneous two-finger coordination to open.
- Tamper-Evident Wafer Seals: Clear transparent or holographic adhesive labels placed across the top and bottom closure flaps. Any attempt to open the box results in visible fiber tear or void patterning.
- Perforated Tear Strips: Integrated zipper-style tear notches die-cut into the paperboard that permanently detach upon initial opening, providing immediate visual verification of product integrity.
6. Artwork Layout and Compliance Labeling Panels
Regulatory guidelines for botanical extracts, supplements, and cannabinoid tinctures mandate specific information panels. Designing your dieline layout with dedicated compliance zones ensures clean aesthetics without risking regulatory non-compliance.
Essential Panel Allocation Checklist
- Primary Display Panel (PDP - Front): Brand name, product title, net fluid volume (e.g.,
30 mL / 1.0 fl oz), primary active compound concentration (e.g.,1000 mg Total Cannabinoids), and mandatory universal symbols (if applicable). - Secondary Information Panel (Right Side): Suggested use instructions, calibrated dropper dosage guidelines (e.g.,
0.5 mL = 16.6 mg), storage recommendations (keep in cool, dark place), and allergen disclosures. - Supplement / Nutrition Facts Panel (Left Side): Structured tabular layout detailing serving size, servings per container, carrier oil ingredients, and active botanical concentrations.
- Compliance & Traceability Panel (Back / Bottom):
- Mandatory state/federal health warnings in designated type sizes and bounding boxes.
- Dynamic batch/lot number and expiration date stamping white zone.
- High-resolution, vector-crisp QR code linking directly to third-party Certificate of Analysis (COA) batch testing records.
- Universal UPC/EAN barcode sized at 80% to 100% magnification for rapid point-of-sale scanning.
7. Printing Methods and Decorative Finishes
Transforming a functional box into an eye-catching retail asset relies on precision printing and luxury tactile finishes.
| Finish Option | Visual & Tactile Effect | Best Application | Production Recommendation |
|---|---|---|---|
| Soft-Touch Matte Lamination | Velvety, non-reflective suede texture; resists fingerprints | Premium botanical extracts, luxury wellness lines | Pair with Spot UV or hot foil for striking contrast |
| Spot UV Varnish | High-gloss, raised clear coating over matte surfaces | Highlighting brand logos, droplet graphics, or text | Ensure 1mm clearance from fold lines to prevent cracking |

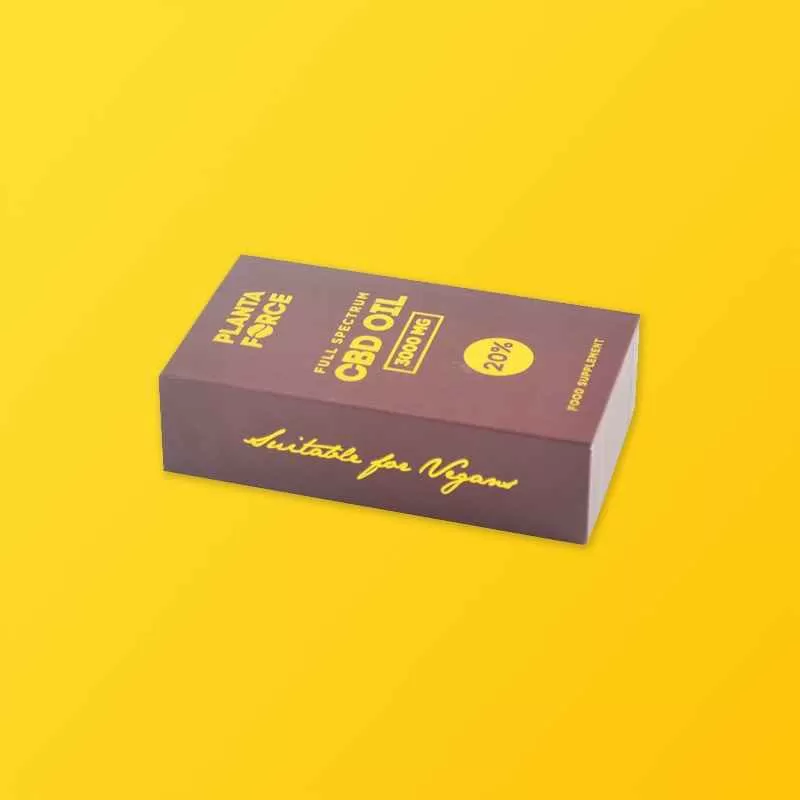

| Metallic Hot Foil Stamping | Gleaming gold, silver, copper, or rose gold foil | Luxury branding, metallic borders, seal emblems | Use micro-embossed foil dies for extra brilliance |
| Embossing / Debossing | Multi-dimensional raised or recessed paperboard relief | Brand crests, botanical patterns, tactile logos | Best on 18pt–24pt virgin SBS or heavyweight kraft |
| Inside-Carton Printing | Full-color graphics or brand story inside the box | Premium unboxing reveal, detailed usage guides | Enhances customer retention on slider & tuck cartons |
8. B2B Procurement, MOQs, and Flat-Pack Logistics
Sourcing custom packaging efficiently requires balancing upfront tooling costs against per-unit volume discounts.
- Low-Run Flexibility: Standard digital printing allows agile runs from 100 to 500 units without custom printing plate charges—ideal for seasonal scents or testing new extract formulations.
- High-Volume Offset Efficiency: For orders of 1,000 to 50,000+ units, large-format offset lithography drastically reduces per-unit costs while delivering flawless Pantone color consistency across repeat batches.
- Flat-Pack Shipping and Storage: Folding cartons (auto-lock, RTE, STE) ship 100% flat in master corrugated cases, maximizing pallet density and minimizing warehouse storage footprint. A single pallet can hold over 20,000 flat-packed 30ml tincture cartons.
9. Pre-Quote Specification Checklist
Before requesting a custom tincture packaging quote or dieline template from your packaging specialist, gather the following technical details:
- Exact Bottle Blueprint: Base diameter, shoulder height, and total height to the tip of the dropper bulb (measured in mm or inches).
- Target Box Style: Auto-lock bottom, reverse tuck, straight tuck, slider drawer, or two-piece rigid box.
- Internal Protection: Standard box cavity, die-cut paperboard neck collar, or custom EVA foam insert.
- Substrate Preference: 18pt–24pt SBS white cardstock, natural kraft, or specialty metallic board.
- Print & Finish Specifications: 4-color CMYK process, Pantone spot colors, soft-touch matte lamination, spot UV, or metallic foil stamping.
- Order Volume Tiers: Target order quantities (e.g., 500, 1,000, 2,500, 5,000, 10,000 units) to compare price break curves.
- Compliance Details: Required white knock-out zones for batch lot stamping and scannable COA QR codes.
FAQ
What are the standard dimensions for a 30ml (1 oz) custom tincture box?
While glass bottle shapes vary slightly by manufacturer, the standard internal box dimension for a classic 30ml (1 oz) Boston Round dropper bottle is 35 mm x 35 mm x 112 mm (approximately 1.38" W x 1.38" D x 4.41" H). This provides 2mm to 3mm of clearance around the bottle diameter and ensures the rubber dropper bulb is never compressed when the top flap is closed.
Why is an auto-lock bottom recommended for glass tincture packaging?
Glass tincture bottles are relatively heavy and top-heavy due to their glass wall thickness and liquid contents. An auto-lock bottom (crash lock) features interlocking, pre-glued bottom flaps that automatically form a rigid base when popped open. This eliminates the risk of bottom flaps opening under the bottle's weight during handling.
Do I need a custom insert for a single tincture bottle?
For standard tuck and auto-lock cartons with an exact snug fit, a secondary insert is often optional for retail store sales. However, if you are shipping glass bottles directly to consumers via e-commerce, or if you are using a wider slider or gift box, a die-cut paperboard collar or foam insert is strongly recommended to suspend the dropper and prevent glass breakage during transit.
How do oil-resistant coatings protect tincture packaging?
Carrier oils like MCT oil, hemp oil, or jojoba oil can easily seep into untreated paper fibers, leaving unsightly dark oil stains. Applying a protective matte or gloss film lamination or specialized aqueous barrier varnish seals the paperboard, making it easy to wipe away stray drops without staining the printed artwork.
How quickly can custom tincture boxes be produced and delivered?
Standard production time at Brisk Packaging is 8 to 10 business days following final digital artwork proof approval. Rush production options (5 to 7 business days) are available for urgent product launches. Every order includes free design support, no die plate charges, and fast shipping.
