Custom magnetic closure boxes are high-end rigid presentation packages engineered with concealed neodymium magnets embedded beneath wrapped paperboard plies, producing an audible, secure, and satisfying tactile snap upon closing. Unlike lightweight folding cartons or standard corrugated mailers, magnetic boxes are constructed from dense, non-bending greyboard (chipboard) ranging from 1.5 mm to 3.0 mm in thickness (800 GSM to 1800 GSM). They serve as the gold standard for premium direct-to-consumer (DTC) brands, fine jewelry, luxury cosmetics, consumer electronics, limited-edition spirits, high-value influencer PR kits, and corporate gifting. By combining permanent structural protection with an effortless book-style opening reveal, magnetic closure packaging transforms a simple product handoff into an unforgettable sensory unboxing ritual.
Investing in dedicated custom magnetic closure boxes elevates perceived product value, encourages customer keepsake retention, and commands retail price premiums. This comprehensive technical guide breaks down greyboard engineering, magnetic hardware calibration, structural styles (including collapsible flat-pack designs), custom foam insert tolerances, luxury surface embellishments, freight economics, and prepress quoting requirements.
Anatomy & Engineering of Magnetic Closure Boxes
The seamless luxury of a magnetic box relies on precision multilayer fabrication. Rather than cutting and folding a single sheet of paperboard, a magnetic rigid box is assembled from three distinct physical layers:
- Solid Greyboard Core (Substrate): The structural skeleton consists of dense, multi-ply recycled chipboard (often referred to as greyboard or binder's board). Thickness ranges from 600 GSM (1.2 mm) for miniature jewelry boxes up to 1800 GSM (3.0 mm) for oversized presentation crates. Grooves are V-cut or die-scored at exact 90-degree or 120-degree angles to create crisp, razor-sharp exterior edges without corner rounding.
- Concealed Magnetic Hardware: Miniature, high-flux neodymium-iron-boron (NdFeB) disc or rectangular strip magnets (grades N35 to N52) are countersunk into precision-milled pockets within the chipboard core. Placing magnets flush with the board surface ensures that exterior wrap papers lay perfectly flat without unsightly surface bulges or telegraphing. In high-efficiency builds, a magnet on the closure flap pairs with a thin ferromagnetic steel disc on the receiving wall, reducing raw material costs while maintaining strong closing tension.
- Exterior and Interior Wrap Liners: Lightweight decorative papers (typically 128 GSM to 157 GSM C1S coated art paper, virgin unbleached kraft, or specialty textured bookbinding stocks) are litho-printed, laminated, and wrapped around the greyboard core using high-tack, water-based adhesives. Precision edge-turn folding (usually 15 mm to 20 mm fold-over) prevents board edge exposure and ensures clean seam alignment.
To explore how rigid core structures compare with standard cartons, review our in-depth comparison of rigid boxes vs folding cartons.
Magnetic Hardware & Magnetic Field Calibration
The tactile feel of opening and closing a magnetic box depends directly on magnet grade, diameter, thickness, and magnetic polarity alignment:
- Neodymium Magnet Grades (N35–N52): Rare-earth neodymium magnets offer the highest magnetic flux density per cubic millimeter. N35 grade is the standard commercial benchmark for lightweight cosmetics and apparel boxes. Heavier lids, oversized PR kits, and items packaged with dense internal foam require N48 or N52 grade magnets to ensure the lid does not pop open during handling or transit.
- Disc vs. Strip Geometries: Round disc magnets (typically 10 mm to 15 mm diameter, 1.0 mm to 2.0 mm thickness) provide concentrated focal attraction, ideal for single-point flap closures. Elongated strip magnets (such as 30 mm x 8 mm x 1 mm) distribute pull force evenly across wide closure flaps, eliminating lid curling on wide-format presentation boxes.
- Polarity Alignment & Pre-Lamination Testing: In dual-magnet configurations (magnet-to-magnet), positive (North) and negative (South) poles must be strictly matched during automated assembly. A reversed magnet creates repulsive magnetic force, preventing the box from closing. Professional manufacturing protocols at Brisk Packaging incorporate automated magnetic polarity sensors on assembly lines to verify flawless alignment before final lamination.
- Magnet vs. Steel Catch Plates: For budget-optimized luxury runs, pairing one active neodymium magnet in the flap with a zinc-plated steel strike plate in the base lowers unit cost by 15% to 25% while delivering virtually identical magnetic grip.
Structural Styles of Magnetic Closure Boxes
Magnetic closure packaging is versatile, adapting to different functional needs, shipping logistics, and unboxing narratives. Explore the primary structural configurations:
1. Book-Style Magnetic Boxes (3-Panel and 4-Panel)
The classic book-style box mimics the architecture of a prestigious hardcover volume. A rigid 3-panel or 4-panel wrap folder encases an internal rigid tray.
- 3-Panel Book Style: Features a front cover, spine, and back cover. The rigid tray is permanently adhered to the back cover, and the front cover flips open from right to left, secured by a magnetic front lip.
- 4-Panel Book Style: Adds a wrap-around front flap that extends over the right-side wall of the internal tray, providing double-wall magnetic closure and broad real estate for side-panel branding or foil graphics.

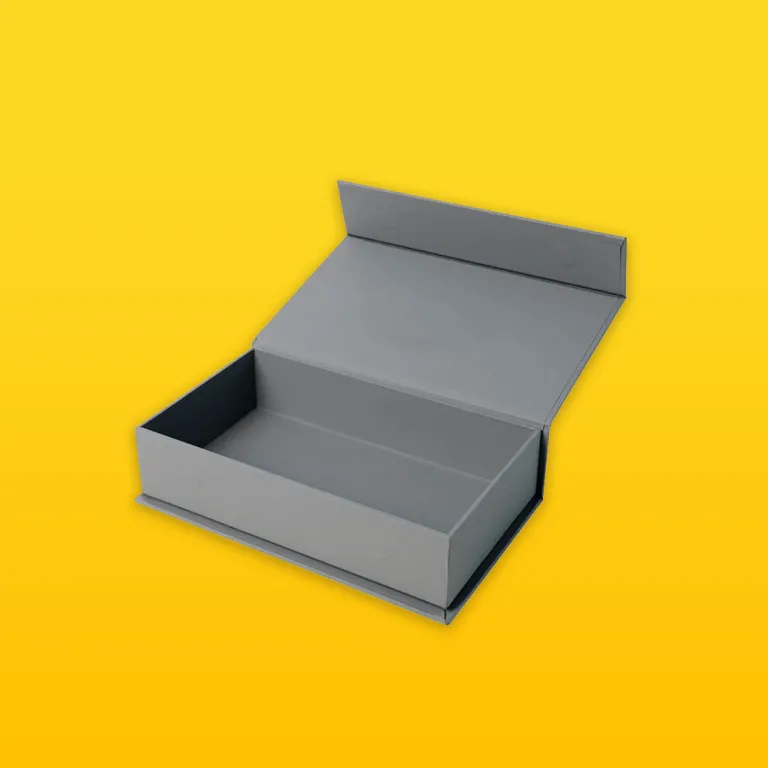

2. Collapsible / Foldable Magnetic Boxes (Flat-Pack Luxury)
Traditional rigid setup boxes consume enormous cubic volume during ocean freight, air transport, and pallet warehousing. Collapsible magnetic boxes solve this challenge through ingenious origami-inspired engineering.
Fabricated with precision segmented greyboard panels, these boxes ship completely flat. At the fulfillment station, the assembler lifts the four sidewalls into place. Pre-applied peel-and-stick high-tack 3M adhesive tabs or integrated corner magnet flaps lock the four corners into a completely rigid, square setup box within three seconds.
Key Advantages of Collapsible Magnetic Boxes:
- Reduces freight volume and shipping carbon footprint by up to 70% compared to fully assembled setup boxes.
- Slashes warehouse storage space requirements by 4:1.
- Provides identical unboxing rigidity and exterior luxury once assembled.
3. Double-Door / Gatefold Magnetic Boxes
Gatefold boxes feature two symmetrical front flaps that meet precisely along the center vertical axis of the box. Each flap contains concealed magnets along its inner edge that lock into internal base magnets or center catches. Opening the box involves swinging both flaps outward simultaneously, creating a dramatic, theatrical stage reveal ideal for VIP gifting, wedding stationery, and ultra-premium spirits.
4. Hinged Shoulder / Neck Magnetic Boxes
Shoulder boxes incorporate an internal neck collar that extends above the base tray. The magnetic lid closes over the exposed neck, resting flush with the lower base walls (flush joint) or leaving a visible contrasting collar band (exposed neck style). The neck can be lined with contrasting metallic foil, vibrant Pantone ink, or velvet fabric to create a multi-tone aesthetic reveal.
Explore other luxury structural alternatives in our guide to custom drawer boxes and custom rigid boxes.

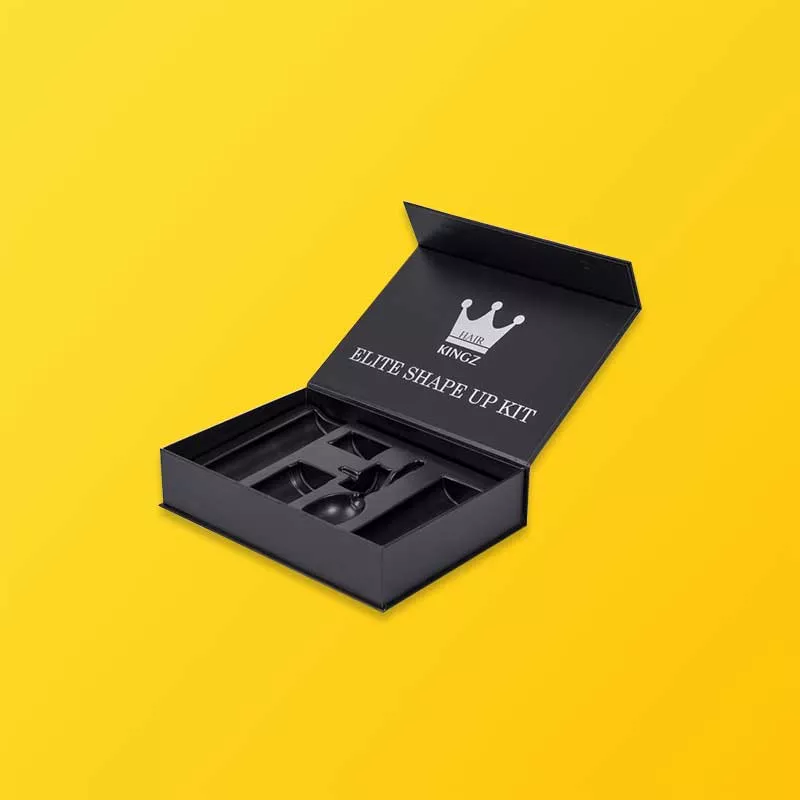

Custom Internal Inserts & Product Cradles
A luxury magnetic box requires internal engineering that matches the elegance of its exterior shell. Loose, shifting products damage delicate finishes and diminish customer confidence. Custom-engineered inserts securely position products while highlighting key branding details.
| Insert Material | Density & Characteristics | Best Suited Applications | Aesthetics & Customization | Recyclability / Sustainability |
|---|---|---|---|---|
| High-Density EVA Foam | 38°–45° Shore C hardness; dense, firm, odorless, water-resistant | Fine jewelry, luxury perfumes, optics, electronics | Top-laminated with black, white, or color velvet flocking; laser-cut cavities | Reusable keepsake; specialty synthetic recycling |
| Velvet-Flocked Sponge (PU) | Soft, open-cell flexible polyurethane foam | Glass dropper bottles, delicate crystals, watches | Ultra-soft plush velvet surface; provides gentle compression | Standard polyurethane recycling streams |
| Custom Thermoformed Trays (PET / Blister) | Rigid molded thermoplastic polymer (0.5 mm–1.0 mm) | Multi-item cosmetic palettes, ampoules, tech kits | Clear, translucent, gloss black, or flocked velvet finishes | High (100% recyclable rPET available) |
| Rigid Cardstock & Kraft Bridges | Folded 18pt–24pt SBS paperboard or kraft card | Eco-conscious skincare, apparel, organic wellness | Full-color offset printing, metallic foil stamping, die-cut tabs | 100% Curbside recyclable with paper streams |
| Molded Plant Fiber / Pulp | Biodegradable thermoformed sugarcane bagasse or bamboo | Sustainable luxury cosmetics, smart home devices | Smooth organic surface texture, custom-molded contoured cavities | 100% Compostable & curbside recyclable |
Precision Insert Engineering Rules:
- Finger Extraction Notches: Always incorporate half-moon or semi-circular finger cutouts alongside snug foam cavities so users can remove heavy or tightly fitted items without tearing the insert.
- Ribbon Pull-Tabs: For multi-tier kits (such as secondary compartments or literature envelopes resting underneath an upper tray), integrate a 15 mm to 25 mm dyed satin ribbon pull-tab beneath the insert.
- Cavity Tolerance Offsets: For glass bottles, ceramics, and molded plastics with minor manufacturing tolerances, engineer a +0.5 mm to +1.0 mm perimeter buffer into the CAD dieline to prevent insert binding during high-speed fulfillment.
Read our complete packaging inserts guide for comprehensive foam density and cardboard insert design rules.
Exterior Paper Wraps & Luxury Surface Finishes
The tactile surface of a magnetic box communicates craftsmanship before the lid is even opened. Selecting the right combination of wrap paper substrates and decorative finishes defines your brand's physical presence.
Exterior Paper Wrap Substrates:
- 157 GSM Coated Art Paper (C1S / C2S): The industry standard for full-color photographic printing, smooth gradient rendering, and crisp typography. Provides a smooth, uniform surface for lamination and hot stamping.
- Virgin Unbleached Kraft Paper (120–140 GSM): Delivers a natural, organic, and eco-friendly raw aesthetic. Pairs well with minimalist black ink printing and metallic bronze or white foil stamping.
- Specialty Textured & Embossed Papers: Leatherette, linen-embossed, ribbed kraft, iridescent metallic, and cotton-blend papers add multi-sensory depth without heavy ink coverage.
- Soft-Touch Velvet Paper & Bookcloth: Real woven fabric (linen, silk, or coated buckram) wrapped over greyboard conveys heirloom durability for executive archives, high-end timepieces, and commemorative volumes.
High-Impact Surface Finishes:
- Soft-Touch Matte Lamination: Applies a micro-thin polyurethane film that gives the box an ultra-smooth, velvet-like tactile feel while resisting scuffs and fingerprint smudges. Learn more in our comparison of matte vs gloss lamination.
- Hot Metallic Foil Stamping: Uses heat and a custom brass or magnesium die to bond reflective metallic foils (gold, silver, rose gold, copper, satin brass, or rainbow holographic) directly to the paper wrap. Explore our technical breakdown of foil stamping vs spot UV.
- Raised Spot UV & 3D Varnish: Applies a high-gloss, clear polymer coating over selective artwork elements (such as logos, patterns, or brand taglines), creating contrasting tactile gloss highlights against a matte background.
- Multi-Level Blind Embossing / Debossing: Uses CNC-machined male and female dies to raise (emboss) or depress (deboss) intricate vector artwork into the rigid board without adding ink or foil.
Dimensional Matrix & Structural Selection Guide
Selecting box dimensions, board thickness, and magnetic configurations depends on product weight, fragility, and retail shelf footprint. Use this reference matrix to establish project parameters:
| Product Application | Typical Internal Dimensions (L x W x D) | Greyboard Caliper | Recommended Box Style | Magnetic Configuration | Insert Recommendation |
|---|---|---|---|---|---|
| Fine Jewelry & Rings | 3.5" x 3.5" x 1.5" (90 x 90 x 40 mm) | 1.5 mm (800 GSM) | 3-Panel Book Style | 1x Pair N35 Disc (10x1mm) | High-density black velvet EVA foam with ring/pendant slot |
| Luxury Skincare Set (3 Bottles) | 8.0" x 6.0" x 2.5" (200 x 150 x 65 mm) | 2.0 mm (1200 GSM) | 4-Panel Book Style | 2x Pairs N38 Discs (12x1.5mm) | Precision die-cut EVA foam with satin ribbon pull-tab |
| DTC Apparel & Knitwear | 14.0" x 10.0" x 4.0" (355 x 255 x 100 mm) | 2.5 mm (1500 GSM) | Collapsible Flat-Pack | 2x Pairs N45 Strip Magnets (30x10mm) | Printed custom tissue paper wrap with branded sticker seal |
| Consumer Tech & Earphones | 7.0" x 5.0" x 2.0" (180 x 125 x 50 mm) | 2.0 mm (1200 GSM) | 4-Panel Book Style | 2x Pairs N42 Discs (12x1.5mm) | Matte black thermoformed rPET tray with cable recess |
| Spirits & Wine Bottle Presentation | 13.5" x 4.5" x 4.5" (340 x 115 x 115 mm) | 3.0 mm (1800 GSM) | Hinged Neck / Gatefold | 4x Pairs N50 Discs (15x2mm) | Contoured high-density EVA cradle with neck collar lock |
| Corporate VIP Kit / PR Box | 16.0" x 12.0" x 5.0" (405 x 305 x 125 mm) | 3.0 mm (1800 GSM) | Double-Door Gatefold | 4x Pairs N52 Discs (15x2mm) | Multi-tier EVA foam layers with printed acrylic cover sheet |
Browse our custom production records for custom printed magnetic closure gift boxes and custom gift boxes to explore real-world dimensional configurations.
Freight Optimization, Stacking Physics & Economics
Understanding the logistics and total landed cost of rigid packaging is crucial for brand profitability:
1. Setup Box vs. Collapsible Box Freight Math
A standard setup rigid box occupies its full cubic volume during transit. Shipping 5,000 fully assembled 10"x8"x3" boxes requires approximately 16 standard pallet positions (approx. 20 cubic meters).
By transitioning to collapsible magnetic closure boxes, those same 5,000 units collapse flat into thin 10"x8"x0.5" bundles, consolidating onto just 4 pallet positions. This 75% volume reduction slashes ocean container and LTL trucking freight expenses by thousands of dollars per production run.
2. Vertical Stacking Rigidity & Pallet Loading
Because magnetic boxes are built from dense greyboard (1.5 mm–3.0 mm solid fiber), they possess immense Edge Crush Test (ECT) and flat compression resistance. Unlike corrugated cartons that soften in high humidity, rigid magnetic boxes withstand vertical warehouse pallet stacking loads exceeding 150 lbs per box column without sidewall buckling.
3. Volume Purchasing Curves & Tooling Amortization
- Minimum Order Quantity (MOQ): Standard custom magnetic rigid box runs start at 100 units at Brisk Packaging. This allows emerging brands to launch VIP collections without tying up capital.
- Tooling Costs: Custom magnetic boxes require cutting dies, magnet positioning jigs, and foil stamping plates. On short runs (100 to 250 units), tooling accounts for a higher percentage of unit cost. At volumes of 1,000 to 5,000+ units, tooling costs amortize down to pennies per unit, driving unit prices down by 40% to 60%.
For related e-commerce shipping strategies, see our custom mailer boxes guide.
Common Engineering Mistakes to Avoid
Avoid these frequent design and prepress errors when developing custom magnetic boxes:
- Undersized Magnet Pull Force: Specifying small or low-grade magnets on large or heavy boxes causes the flap to pop open when picked up by hand. Always match magnet diameter, thickness, and grade to the total flap leverage and product weight.
- Placing Foil or UV Across Hinges: Applying hot foil stamping or spot UV coatings directly over the flexible paper hinge seams causes cracking, flaking, or delamination after repeated opening cycles. Keep foil and varnishes at least 5 mm away from score lines and hinge bends.
- Ignoring Board Thickness in Internal Dimensions: Greyboard has substantial caliper (e.g., 2.5 mm wall thickness). A box with an exterior width of 100 mm will only have an interior clearance of approximately 95 mm. Always design your CAD dieline based on interior cavity clearances.
- Neglecting Insert Finger Clearances: Designing tight-fitting foam cavities without half-moon finger notches forces customers to dig, shake, or pry their products out, ruining the unboxing experience.
- Humidity and Grain Direction Misalignment: Paperboard cores and wrap papers must be cut with matching paper grain direction. Misaligned paper grain causes moisture-induced warping (cupping) in humid climates, preventing magnetic flaps from aligning flush.
B2B Custom Quoting & Prepress Checklist
Have the following technical specifications ready when requesting a production quote:
- [ ] Interior Dimensions: Exact Length x Width x Depth (measured in inches or millimeters).
- [ ] Box Structural Style: 3-Panel Book Style, 4-Panel Book Style, Collapsible Flat-Pack, Gatefold Double-Door, or Shoulder Box.
- [ ] Greyboard Core Caliper: 1.5 mm (800 GSM), 2.0 mm (1200 GSM), 2.5 mm (1500 GSM), or 3.0 mm (1800 GSM).
- [ ] Exterior Wrap Material: 157 GSM Coated Art Paper, Virgin Kraft Paper, Linen Bookcloth, or Specialty Textured Paper.
- [ ] Printing Specifications: Exterior CMYK Full-Color, Interior Liner Print, or Solid Pantone (PMS) Spot Inks.
- [ ] Surface Finishes: Soft-Touch Matte Lamination, Anti-Scratch Gloss Lamination, Metallic Foil Stamping, Spot UV, or Embossing.
- [ ] Internal Insert Requirements: Die-cut EVA foam, velvet-flocked sponge, thermoformed rPET tray, or paperboard bridge with custom cavity cutouts.
- [ ] Hardware Features: Concealed neodymium magnets (specify quantity/grade), ribbon pull-tabs, or finger extraction notches.
- [ ] Order Quantity Tiers: e.g., 100, 250, 500, 1,000, 2,500, or 5,000+ units.
- [ ] Delivery Destination & Timeline: Shipping zip code and required in-hand deadline.
FAQ: Frequently Asked Questions
What makes custom magnetic closure boxes superior to standard rigid setup boxes?
Custom magnetic closure boxes integrate a hinged lid and concealed neodymium magnets that snap securely shut, creating an intuitive, book-style opening reveal. Unlike standard two-piece lid-and-base boxes that require two hands to open and can stick during removal, magnetic boxes open effortlessly with one hand and stay securely closed during handling without requiring external tape or rubber bands.
Can magnetic closure boxes be shipped and stored flat?
Yes. Collapsible (foldable) magnetic closure boxes are engineered with segmented greyboard panels and pre-applied high-tack 3M corner adhesive tabs. They ship completely flat, reducing freight volume and warehouse storage space by up to 70%. When ready for fulfillment, warehouse staff can assemble each box into a rigid, permanent structure in under five seconds.
Are magnetic closure boxes safe for shipping electronics and air cargo?
Yes. The magnetic field produced by miniature neodymium disc magnets (typically 10 mm to 15 mm) is localized and fully shielded by the dense greyboard core and exterior wrap liners. They comply with FAA and IATA air transport regulations regarding magnetic field interference and do not damage modern consumer electronics, smartphones, solid-state memory drives, or watches.
What is the minimum order quantity (MOQ) for custom magnetic boxes at Brisk Packaging?
Our standard minimum order quantity starts at just 100 units for custom printed magnetic closure boxes. This low barrier allows boutique brands, startups, and luxury product developers to produce high-end packaging without committing to massive production runs. Substantial volume discounts take effect at 500, 1,000, and 2,500+ units.
How do I obtain custom dielines and 3D digital box proofs for my brand?
Brisk Packaging provides free custom 3D digital box renderings and production-ready vector dielines within 24 to 48 hours. Simply submit your product dimensions and structural preferences through our sample and quote forms. Our packaging engineers prepare precision CAD dieline templates formatted for Adobe Illustrator and provide photorealistic 3D digital mockups illustrating your artwork, foil stamping, and magnetic closures before production starts.
Request Your Custom Quote & Free 3D Box Design
Ready to elevate your product unboxing experience with custom magnetic closure boxes? Partner with Brisk Packaging for premium materials, precision magnetic engineering, and low minimum orders.
- Request a Custom Quote: Visit our online quote page to receive custom pricing within 24 hours.
- Get Free 3D Design Support: Visit our free samples & dieline page to request free custom 3D digital box mockups and precision vector dielines for your project.
- Speak With a Specialist: Contact our packaging engineering team at Brisk Packaging to review material swatches, foam inserts, and collapsible structural options.
