How to Choose Custom Vape Boxes: Hardware Protection, Cartridge Inserts, and Compliance

Learn how to choose custom vape boxes for cartridges, disposable pens, e-liquids, and mod kits. Compare box styles, custom EVA foam inserts, compliance layouts, and luxury finishes.

Brisk Admin

Packaging Content Specialist

September 22, 2026

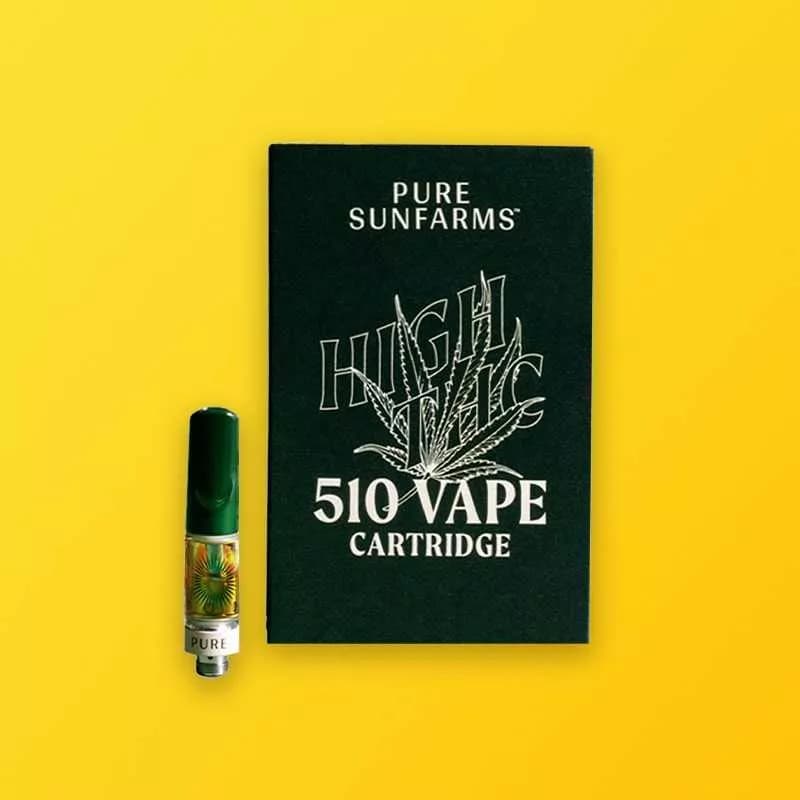

Custom vape cartridge packaging boxes with precision custom inserts and branded retail folding cartons

To choose custom vape boxes, match your specific hardware profile (standard 0.5ml or 1.0ml 510-thread cartridges, all-in-one disposable vape pens, pod systems, e-liquid dropper bottles, or advanced mod starter kits) to a rigid or folding carton structure, then select precision-cut internal inserts (high-density EVA foam or molded pulp) that immobilize glass tanks and prevent oil leakage during transit. Finally, configure mandatory regulatory warning panels, tamper-evident closures, and tactile retail finishes like soft-touch lamination and holographic foil stamping to command attention on crowded dispensary and vape shop shelves.

The vaporizer market is one of the most competitive and strictly regulated sectors in modern retail packaging. Whether you are launching an artisan botanical oil cartridge line, scaling high-capacity disposable vape pens, or packaging multi-piece mod kits with replacement coils, your packaging must balance three demanding objectives:

Hardware & Formula Protection: Shielding delicate glass tanks, ceramic heating cores, and sensitive lithium-ion batteries from drop impacts, transit vibration, and temperature fluctuations.
Strict Regulatory Compliance: Allocating mandated surface area for FDA nicotine warnings, state-specific cannabis universal symbols, California Prop 65 notices, batch/lot tracking, and third-party Certificate of Analysis (COA) QR codes.
Retail Brand Distinction: Standing out in tightly merchandised glass display cases, countertop point-of-sale displays, and e-commerce unboxing moments through premium structural reveals and sensory finishes.

In this comprehensive guide, we examine the core box styles, substrate calipers, insert engineering tolerances, regulatory layout strategies, and finishing techniques required to build high-performance custom vape packaging. Explore our complete line of Custom Vape Boxes or request a custom packaging quote with free dieline review from the Brisk Packaging engineering team.

---

1. Core Vape Packaging Structures & Formats

Selecting the right box structure depends on hardware weight, retail display orientation, unit value, and whether your product requires an integrated secondary insert.

`` +-----------------------------------------------------------------------------------+ | VAPE PACKAGING STRUCTURAL MATRIX | +------------------------------------+----------------------------------------------+ | Structure Style | Primary Hardware Application | +------------------------------------+----------------------------------------------+ | 1. Custom Vape Cartridge Boxes | 0.5ml & 1.0ml 510-thread carts, wax tanks | | 2. Reverse & Straight Tuck Boxes | High-speed lines, e-liquids, standard carts | | 3. Sleeve & Tray / Drawer Boxes | Premium disposable pens, luxury live resin | | 4. Heavy-Duty Mod Kit Rigid Boxes | Multi-piece mod devices, tanks, cables | | 5. Blister Packaging Cards | High-security retail peg hooks & blister runs| | 6. Clear PET Display Window Boxes | Visual oil clarity & hardware inspection | +------------------------------------+----------------------------------------------+ ``

Custom Vape Cartridge Boxes (Compact Folding Cartons)

Single-unit vape cartridges—particularly standard 0.5ml, 1.0ml, and 2.0ml 510-thread tanks—require compact, rigid folding cartons that hold the cartridge upright while providing ample printable exterior space for brand artwork and mandatory compliance text.

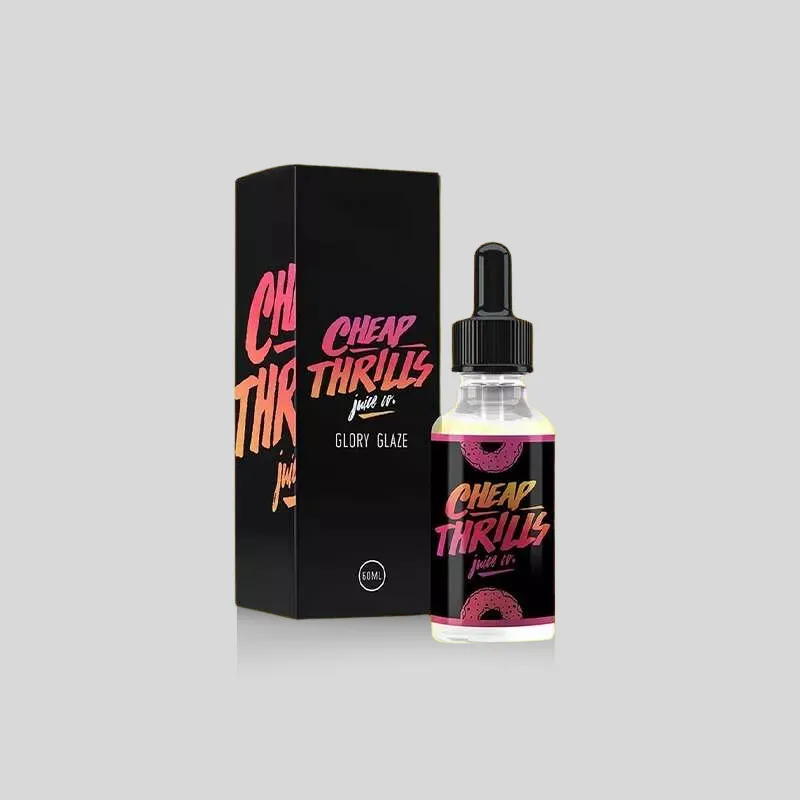

Custom printed e-liquid vape boxes designed for dropper bottles and leak-resistant bottle protection

Cartridge boxes are typically manufactured from 16pt to 20pt Solid Bleached Sulfate (SBS) paperboard. They incorporate custom die-cut paperboard or high-density EVA foam inserts that snap around the metal collar and silicone tip of the cartridge, preventing the glass reservoir from rubbing against carton walls. Discover our dedicated Custom Vape Cartridge Boxes and Custom E-Liquid Vape Boxes.

Reverse Tuck vs. Straight Tuck Vape Cartons

For high-volume retail product runs and automated filling lines, standard tuck-end paperboard cartons offer the most efficient balance of production speed, unit economics, and structural stability.

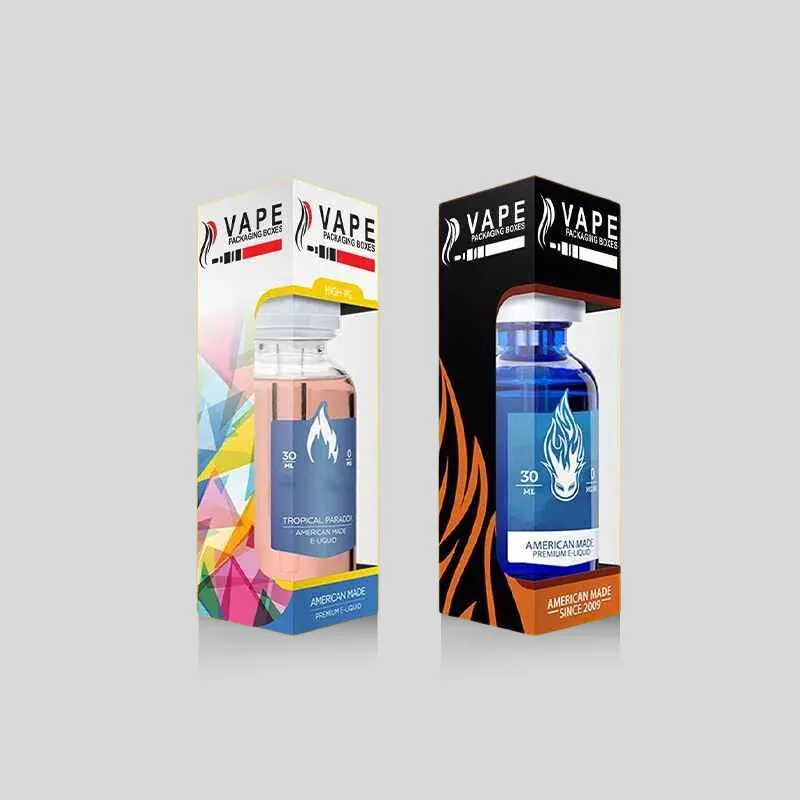

Custom reverse tuck vape boxes engineered for retail dispensary display and compact hardware packaging

Custom Reverse Tuck Vape Boxes: The top closure flap folds from front to back, while the bottom closure flap folds from back to front. This configuration yields optimal nesting on paperboard press sheets, reducing sheet waste and unit manufacturing costs during large-scale manufacturing runs. Explore our Custom Reverse Tuck Vape Boxes.
Custom Straight Tuck Vape Boxes: Both the top and bottom closure flaps fold toward the back of the box, presenting a completely seamless front face with no visible raw cut edges. Straight tuck cartons provide a cleaner canvas for continuous wrap-around artwork and luxury dispensary presentation. Explore our Custom Straight Tuck Vape Boxes.

For a detailed structural comparison of folding carton fold directions and manufacturing tolerances, consult our guide on Straight vs Reverse Tuck Boxes.

Luxury Sleeve and Tray & Slide Drawer Boxes

For premium disposable vape pens, live rosin pods, and limited-edition product drops, multi-piece slider packaging creates an elevated unboxing experience that signals craft quality.

Custom sleeve and tray vape boxes offering smooth slide-out reveal and luxury unboxing presentation

Two-Piece Sleeve and Tray Boxes: An outer printed paperboard sleeve slides smoothly over an inner reinforced tray. The friction-fit glide creates tactile anticipation before revealing the device resting in a color-matched velvet-topped insert. Check our Custom Sleeve and Tray Vape Boxes and Custom Sleeve Boxes Guide.
Custom Drawer Vape Boxes: Constructed with rigid grayboard or heavyweight SBS folding board, drawer boxes feature an integrated ribbon pull tab or thumb-notch cut, allowing customers to slide the inner compartment out effortlessly. Review our Custom Drawer Vape Boxes and Custom Drawer Boxes Guide.

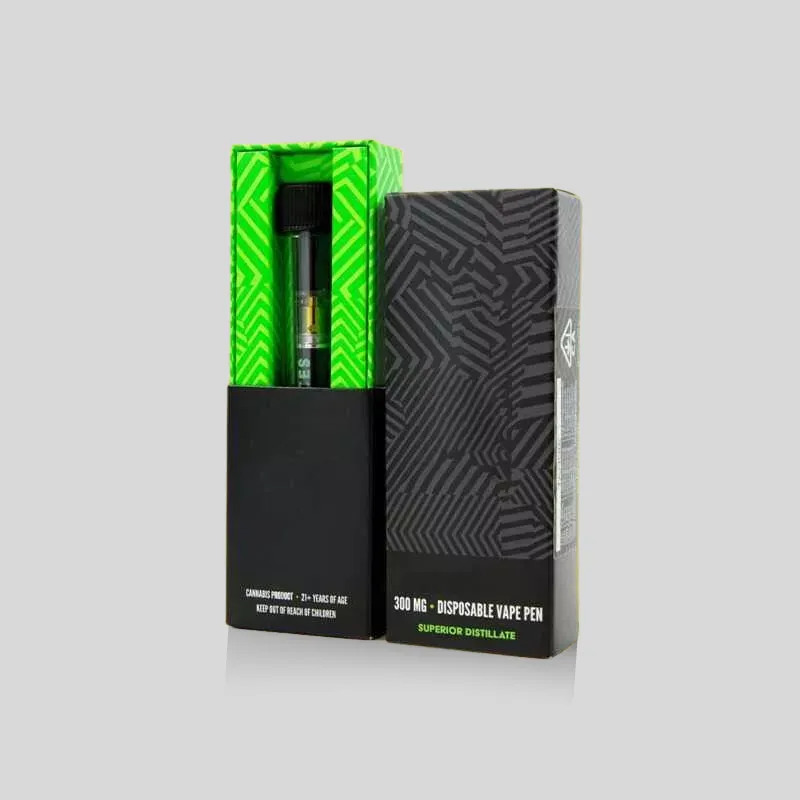

Custom drawer vape boxes with ribbon pull tabs and rigid slider compartments for premium vape collections

Custom Vape Pen & Disposable Device Boxes

Disposable all-in-one (AIO) vape pens and rechargeable battery sticks feature longer, slimmer form factors compared to standalone cartridges. Packaging for these devices must accommodate the full length of the pen (typically 90mm to 135mm) while maintaining a balanced center of gravity so boxes do not tip over on dispensary display shelves.

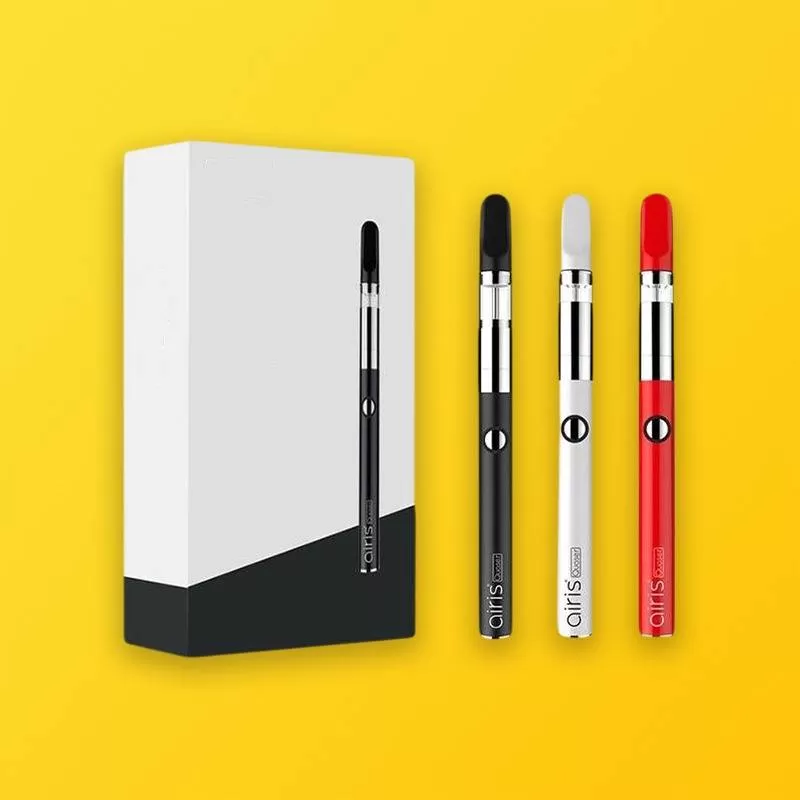

Custom vape pen boxes tailored for rechargeable battery sticks and disposable all-in-one vape hardware

Our Custom Vape Pen Boxes incorporate longitudinal foam stabilizers and auto-lock bottom crash bases that provide rapid assembly on hand-packing lines while supporting the heavier weight of integrated lithium batteries.

Multi-Piece Vape Mod Kit & Starter Kit Packaging

High-wattage box mods, advanced pod systems, and sub-ohm starter kits contain multiple bulky components: the primary battery mod device, sub-ohm tank, spare glass tube, multiple replacement coils, USB-C charging cables, and user manuals.

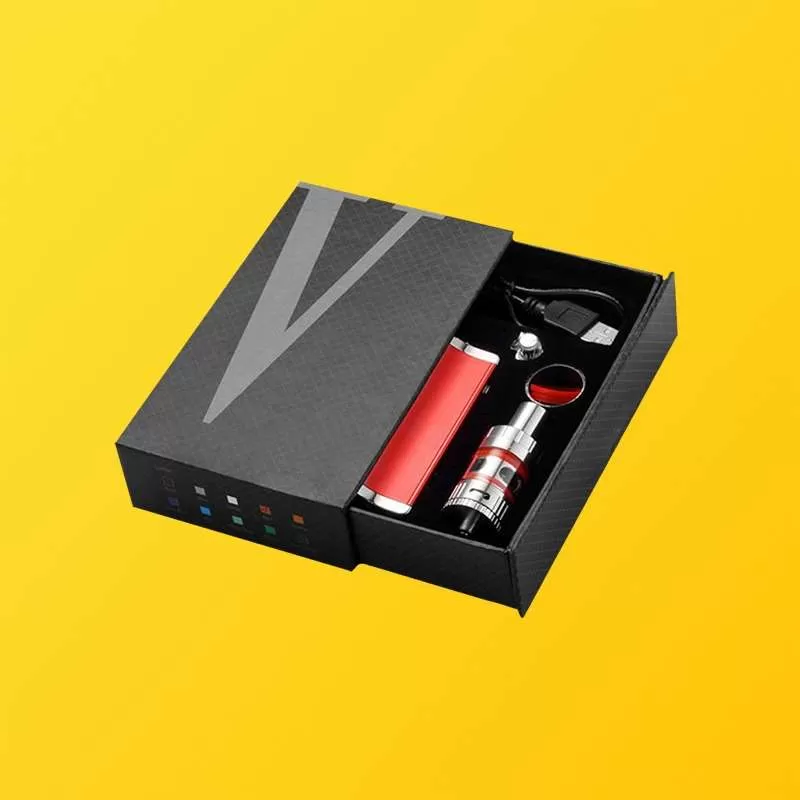

Heavy-duty custom vape mod kit boxes with compartmentalized inserts for tanks, batteries, and charging cables

To package these multi-component systems safely, brands use two-piece telescoping rigid boxes or magnetic closure book-style boxes manufactured with 1.5mm to 2.5mm dense grayboard wrapped in litho-laminated art paper. The interior features multi-tier custom foam or molded pulp trays with dedicated cavities for each component. Browse our Custom Vape Mod Kits Boxes, Custom Vape Accessories Boxes, and our technical guide on Custom Rigid Boxes.

Custom Blister Packaging & Cardboard Backer Cards

For high-volume retail convenience stores, travel hubs, and gas station distribution, blister packaging offers maximum theft deterrence and tamper visibility while enabling high-density hanging peg hook merchandising.

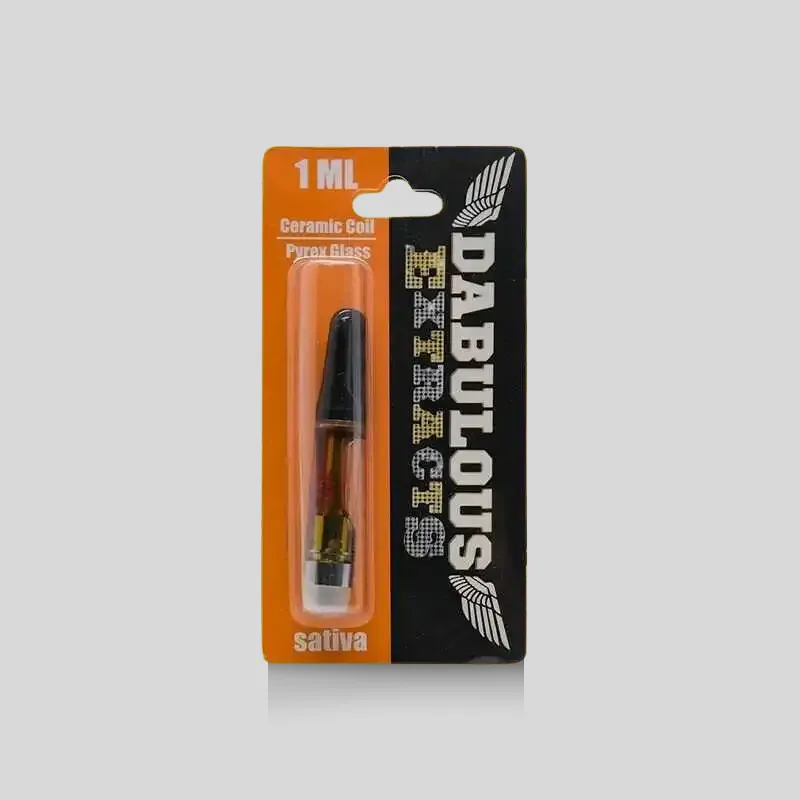

Custom blister packaging cards for vape cartridges with tamper-evident heat-sealed backing

Our Custom Blister Packaging for Cartridges pairs thermoformed clear PVC/PET blisters with heavy 24pt heat-seal coated blister backing cards. The blister flange is permanently bonded to the card, making unauthorized opening immediately evident.

---

2. Substrates, Board Calipers & Structural Materials

Choosing the correct paperboard caliper ensures your vape packaging maintains crisp, sharp edges without crushing or bowing during shipping and retail handling.

Solid Bleached Sulfate (SBS) Virgin Paperboard

SBS is the gold standard for retail vape packaging. Manufactured from bleached virgin wood pulp with a double clay-coated top surface, SBS provides an ultra-smooth, bright white substrate ($90+$ brightness) that renders vibrant CMYK process printing, delicate halftone gradients, and crisp micro-type compliance warnings without ink bleeding. For standard vape carts and e-liquid bottles:

16pt SBS (approx. 350 GSM): Ideal for lightweight 0.5ml cartridges and compact 10ml e-liquid boxes.
18pt–20pt SBS (approx. 400–450 GSM): The industry benchmark for 1.0ml cartridges, disposable pens, and 30ml–60ml e-liquid bottles requiring robust side-wall rigidity.
24pt SBS (approx. 500 GSM): Recommended for heavy blister cards, extra-tall vape pens, and boxes with large die-cut display windows.

For a comprehensive breakdown of paperboard grades versus corrugated fluting, see our guide on Paperboard vs Corrugated Packaging.

Natural Unbleached Kraft Paperboard

For brands emphasizing organic botanical extraction, pure solventless terpenes, or eco-conscious manufacturing, unbleached brown kraft paperboard provides an authentic, sustainable texture. Kraft fibers offer superior tensile and tear strength compared to recycled boards, ensuring box corners remain intact during transit. Pair natural kraft with opaque white silk-screen underlays, bold black typography, or metallic foil stamping for striking modern contrast. Review our dedicated guide on Custom Kraft Boxes.

Rigid Grayboard for Premium Vape Hardware

When packaging high-end electronic vaporizers, dual-battery mod devices, or luxury collector editions, folding cartons lack the necessary physical heft. Rigid boxes utilize dense grayboard (1.2mm to 2.5mm thickness) formed into rigid rectangular trays and wrapped with printed 128 GSM or 157 GSM art paper. This structure will not collapse under heavy stacking pressure and delivers an unmistakable premium feel. Compare rigid box constructions in our Rigid Boxes vs Folding Cartons Guide.

---

3. Precision Insert Engineering: Cavity Fit & Hardware Protection

Vape cartridges and disposable pens contain fragile borosilicate glass reservoirs, precision ceramic heating elements, and liquid oils prone to leaking if subject to excessive vibration or air-pressure changes. A custom interior insert is essential.

High-Density EVA Foam Inserts

Closed-cell Ethylene-Vinyl Acetate (EVA) foam is the premier insert material for vape hardware. Unlike soft sponge or cheap open-cell polyurethane foam, high-density EVA provides crisp, sharp laser-cut cavity edges that do not crumble, tear, or generate dust particles that could contaminate vape mouthpieces or 510 threading.

Custom Cavity Sizing: Cavities must be engineered with a $0.5\text{mm}$ to $1.0\text{mm}$ negative tolerance relative to the hardware dimensions to ensure a firm, rattle-free friction fit.
Finger Notches: Integrated semi-circular thumb notches enable consumers to remove the cartridge or pen smoothly without pulling on the silicone mouthpiece seal.
Top Laminations: EVA foam can be laminated with matching black, white, or colored velvet felt, or finished with a printed cardstock faceplate for branding continuity.

Learn more about insert engineering in our comprehensive Packaging Inserts Guide.

Thermoformed Plastic & Molded Fiber Inserts

Thermoformed PET/PVC Trays: Custom vacuum-formed plastic trays feature undercut snap-fit ridges that lock cartridges securely in place. If a cartridge seal fails during elevation changes in transit, the plastic tray acts as a sealed containment barrier, preventing oil from staining the outer paperboard box.
Molded Pulp & Folded Paperboard Inserts: For brands aiming for $100\%$ plastic-free packaging, precision molded sugarcane bagasse or folded SBS paperboard inserts cradle the device securely while remaining curbside recyclable.

---

4. Window Cutouts vs. Solid Luxury Cartons

A crucial visual design choice is whether to incorporate a die-cut display window to showcase the product inside or use a fully enclosed solid carton.

Custom vape boxes with clear PET display windows showcasing the internal cartridge and oil level

`` +-----------------------------------+-----------------------------------------------+ | Window Cutout Display Boxes | Solid Luxury Cartons | +-----------------------------------+-----------------------------------------------+ | - Displays oil clarity & color | - 100% light protection (prevents UV oil | | - Lets buyers verify oil fill level| degradation & terpene oxidation) | | - Verifies hardware tip style | - Maximum continuous printable surface area | | - Highly effective in dispensary | - Accommodates large mandatory warning boxes | | glass showcase counters | - Allows edge-to-edge foil stamping & spot UV | +-----------------------------------+-----------------------------------------------+ ``

When to Choose Window Cutouts

Display windows patched with clear, anti-scratch 0.15mm–0.25mm PET film allow retail customers to inspect oil clarity, color purity, and cartridge hardware styling without breaking tamper seals. Check our dedicated Custom Vape Boxes with Window and our Window Boxes Guide.

Important Compliance Note: Certain state and regional jurisdictions restrict transparent packaging windows for cannabis vape products to minimize youth appeal or protect light-sensitive active compounds. Always verify local packaging regulations before finalizing window dielines.

When to Choose Solid Enclosed Cartons

Solid paperboard cartons protect light-sensitive botanical extracts and volatile terpene profiles from photodegradation caused by ambient retail fluorescent lighting. Furthermore, solid boxes provide maximum uninterrupted surface area for brand storytelling, full-bleed artwork, and mandatory compliance warning typography.

---

5. Regulatory Compliance Layout & Security Architecture

Vape packaging must navigate intricate, evolving regulatory frameworks. A poorly planned dieline that fails to allocate required space for mandatory warning statements will result in rejected retail shipments and costly packaging reprints.

`` +------------------------------------------------------------------------------------+ | REGULATORY & COMPLIANCE CHECKLIST | +----------------------+-------------------------------------------------------------+ | Compliance Element | Specification & Layout Requirement | +----------------------+-------------------------------------------------------------+ | FDA Nicotine Warning | Exact text: "WARNING: This product contains nicotine. | | (21 CFR Part 1143) | Nicotine is an addictive chemical." Minimum 30% of the two | | | principal display panels in bold Helvetica/Arial font. | +----------------------+-------------------------------------------------------------+ | State Cannabis | High-contrast universal symbol (e.g., California CA! | | Universal Symbols | triangle, Colorado THC diamond, Michigan marker) sized | | | strictly according to state minimum height rules (0.5"+). | +----------------------+-------------------------------------------------------------+ | Dynamic Batch & Lot | A designated high-contrast white knock-out box reserved | | Overprint Zone | for on-demand thermal-transfer or inkjet printing of UID, | | | batch number, manufacture date, and expiration date. | +----------------------+-------------------------------------------------------------+ | Lab Test COA QR Code | High-resolution, minimum 15mm x 15mm scannable QR code | | Linking | directing consumers directly to third-party potency tests. | +----------------------+-------------------------------------------------------------+ | Tamper-Evident Seals | Perforated tear-strip access, tamper-evident void labels, | | & Authentication | or destructible holographic seals across carton entry tabs. | +----------------------+-------------------------------------------------------------+ ``

FDA & TPD Nicotine Warning Requirements

For e-liquids and nicotine-containing vape devices sold in the United States, FDA regulations require that the mandatory nicotine warning statement appear prominently on the two principal display panels of the package, occupying at least 30% of each panel, set in bold, black text on a crisp white background (or vice versa). Similar 30%–35% front-and-back warning coverage rules apply under the European Tobacco Products Directive (TPD).

Child-Resistant Locking Mechanisms

When packaging regulated botanical concentrates, high-potency cannabis oils, or nicotine e-liquids requiring certified child-resistant (CR) packaging under 16 CFR § 1700 / ASTM D3475 standards, folding cartons must integrate certified dual-action locking mechanisms (such as push-button slider catches or hidden squeeze-release tabs). Review our comprehensive engineering analysis in the Child-Resistant Packaging Guide.

Dynamic Variable Data & Overprinting Zones

Packaging dielines should feature a dedicated un-varnished, white knock-out rectangle ($25\text{mm} \times 15\text{mm}$ or larger). This allows inline thermal-transfer overprinters or automated inkjet coding machines to apply dynamic lot numbers, total THC/CBD percentages, manufacturing dates, and batch identifiers cleanly without ink smearing on coated paperboard.

---

6. Premium Finishes, Foiling & Visual Shelf Differentiation

In crowded dispensary display cabinets, tactile and optical finishes create an immediate sensory perception of high product value.

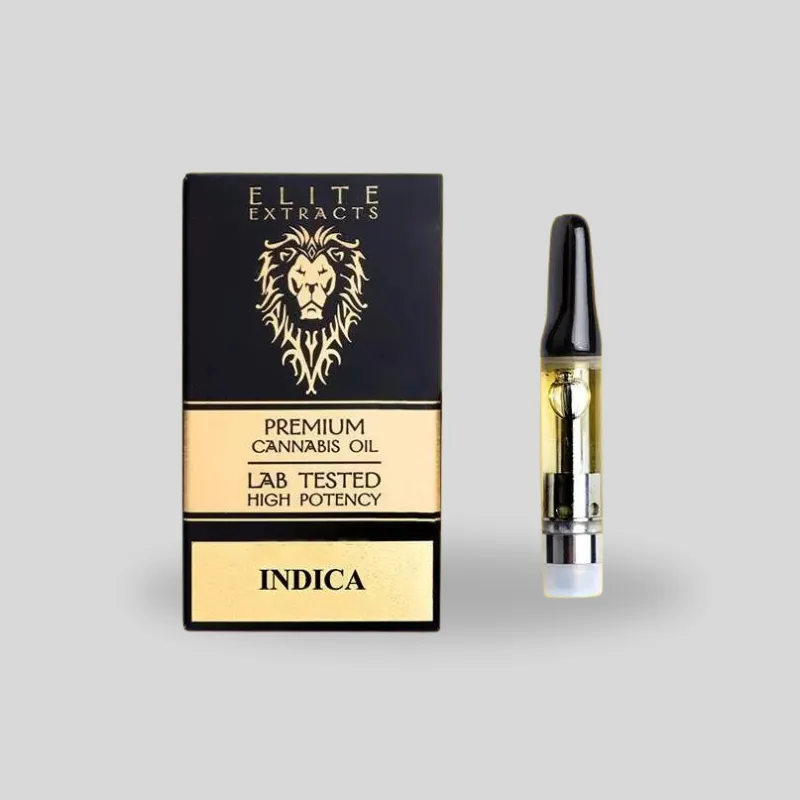

Custom luxury vape boxes featuring metallic gold and holographic foil stamping for high-end retail distinction

Soft-Touch Matte Lamination: Delivers a velvety, non-slip tactile feel that prevents fingerprint smudges while imparting a sophisticated modern aesthetic.
Spot UV Gloss Highlights: Creates dramatic contrast by layering high-build gloss clear polymer over matte backgrounds, making brand logos, terpene strain badges, or botanical illustrations pop off the box. Compare finishing options in our Foil Stamping vs Spot UV Guide and Matte vs Gloss Lamination Guide.
Holographic & Metallic Hot Foil Stamping: Adds dynamic color-shifting rainbow brilliance or classic metallic gold/silver accents that catch retail overhead lighting. Discover our Custom Vape Boxes with Foiling.
Multi-Level Embossing / Debossing: Uses precision brass dies to raise or depress intricate patterns, giving your brand crest or monogram physical depth. Learn more in our Embossing vs Debossing Guide.

---

7. Common Mistakes to Avoid in Custom Vape Packaging

`` +-----------------------------------+-----------------------------------------------+ | Common Vape Packaging Mistake | Preventive Engineering Solution | +-----------------------------------+-----------------------------------------------+ | 1. Improper Insert Tolerances | Measure hardware with digital calipers; | | (Cartridges rattle or crack) | specify 0.5-1.0mm negative tolerance in EVA. | +-----------------------------------+-----------------------------------------------+ | 2. Ignoring Regulatory Warning | Factor 30% warning panels and state symbols | | Surface Area on Dielines | into the dieline before finalizing artwork. | +-----------------------------------+-----------------------------------------------+ | 3. Incompatible Varnish Overprints| Leave un-varnished knock-out boxes for | | (Batch/date codes smudge off) | thermal-transfer and inkjet variable coding. | +-----------------------------------+-----------------------------------------------+ | 4. Thin Board Caliper Selection | Use minimum 18pt SBS for carts and 20pt+ for | | (Bowed walls & creased corners)| pens to ensure structural rigidity. | +-----------------------------------+-----------------------------------------------+ | 5. Neglecting Mouthpiece Height | Account for silicone dust caps and varying tip| | (Cartridge fails to fit box) | styles (duckbill, round, ceramic, wood). | +-----------------------------------+-----------------------------------------------+ ``

Measuring Hardware Without Silicone Protective Caps: Many vape cartridges ship with silicone bottom thread protectors and top mouthpiece covers. If you measure bare hardware, the cartridge will not fit into the foam cavity once the caps are attached. Always prototype inserts using fully assembled hardware with all protective caps in place.
Placing Brand Art Over Mandatory Warning Zones: Designing artwork before mapping compliance requirements often leaves insufficient room for mandatory warning rectangles, forcing emergency re-layouts. Build compliance zones into your master dieline first.
Using Uncoated Recycled Board for Tight Folding: Low-grade recycled paperboard (CRB/CCNB) has shorter wood fibers that can crack along folded score lines, especially on dark printed backgrounds. Specify virgin SBS paperboard with high folding endurance.
Overlooking Tamper Evident Access: Failing to implement tamper-evident perforated tabs or security void seals leaves products vulnerable to retail tampering and customer skepticism.

---

8. Step-by-Step Vape Packaging Quote Checklist

When preparing to request a custom packaging quote, have the following technical specifications ready to ensure an accurate quote and rapid sample turnaround:

[ ] Hardware Category & Format: Standard 510 cartridge (0.5ml / 1.0ml / 2.0ml), all-in-one disposable vape pen, pod cartridge, 30ml/60ml e-liquid bottle, or mod kit.
[ ] Exact Hardware Dimensions: Millimeter dimensions $(L \times W \times H \text{ or } D \times H)$ including mouthpieces and silicone protective covers.
[ ] Desired Box Structure: Reverse tuck folding carton, straight tuck box, two-piece sleeve and tray, drawer slider box, rigid mod kit box, or blister card.
[ ] Substrate & Caliper: 16pt, 18pt, 20pt, or 24pt Solid Bleached Sulfate (SBS); natural kraft board; or rigid chipboard core.
[ ] Interior Insert Specification: High-density custom-cut EVA foam (with or without velvet top), thermoformed clear/black PET blister tray, or molded paper pulp insert.
[ ] Window Specification: Fully solid closed carton or die-cut window with patched clear PET film.
[ ] Print & Color Requirements: Full-color CMYK process, Pantone PMS spot colors, or interior inside-box printing.
[ ] Specialty Finishes: Soft-touch matte lamination, gloss lamination, Spot UV, gold/silver/holographic hot foil stamping, or embossing.
[ ] Regulatory Requirements: Compliance warning panels, universal symbols, and thermal knock-out zones for batch serialization.
[ ] Order Quantities & Production Schedule: Initial order volume (e.g., 500, 1,000, 5,000, 25,000+ units) and target delivery date.

---

FAQ

What is the best paperboard thickness for custom vape cartridge boxes?

For standard 0.5ml and 1.0ml vape cartridge folding cartons, 18pt SBS paperboard (approximately 400 GSM) is the industry standard. It provides excellent structural rigidity, sharp fold definition, and resistance to bowing, while supporting high-resolution offset and digital printing. For larger disposable pens or boxes with die-cut display windows, 20pt to 24pt SBS is recommended.

How do I prevent vape cartridges from rattling or leaking inside the box?

Use a custom high-density EVA foam insert or a custom-formed thermoformed PET tray. EVA foam provides a snug friction fit that immobilizes the glass tank and prevents movement during transit. Ensure the insert cavity is engineered to hold the cartridge vertically upright to minimize oil pooling near top seals.

Can custom vape boxes include clear display windows?

Yes. Custom die-cut windows patched with transparent anti-scratch PET film allow retail customers to inspect oil color and hardware design. However, ensure that window placement complies with your state or regional packaging regulations, as some jurisdictions mandate opaque packaging for cannabis or regulated botanical extracts.

What is the difference between reverse tuck and straight tuck vape boxes?

On a reverse tuck box, the top and bottom closure flaps open in opposite directions (one folds front-to-back, one folds back-to-front), which optimizes sheet yield and lowers manufacturing costs. On a straight tuck box, both flaps fold toward the rear, creating a completely clean front face without visible raw edges, making it ideal for luxury retail presentation.

How much space must be reserved for FDA nicotine warnings?

Under FDA regulations (21 CFR Part 1143), mandatory nicotine health warning statements must occupy at least 30% of the two principal display panels of the outer packaging, rendered in conspicuous, legible bold Helvetica or Arial font.

Can I get custom foam inserts designed to fit my exact vape hardware?

Yes. Brisk Packaging engineers custom CAD dielines and laser-cut EVA foam prototypes based on your hardware's exact physical measurements. You can also ship physical samples of your vape hardware to our structural design team for verified precision fit testing before full production.

---

Custom Vape Packaging Engineered for Your Brand

Whether you need 500 custom folding cartons for a boutique botanical launch or 50,000 luxury rigid drawer boxes for a nationwide vape hardware campaign, Brisk Packaging delivers precision structural engineering, vibrant print fidelity, and full compliance support.

Ready to bring your packaging vision to life? Explore our Custom Vape Boxes Catalog, browse our specialized Vape Cartridge Packaging, or contact our packaging specialists today to request free material samples, dieline templates, and a custom manufacturing quote.
